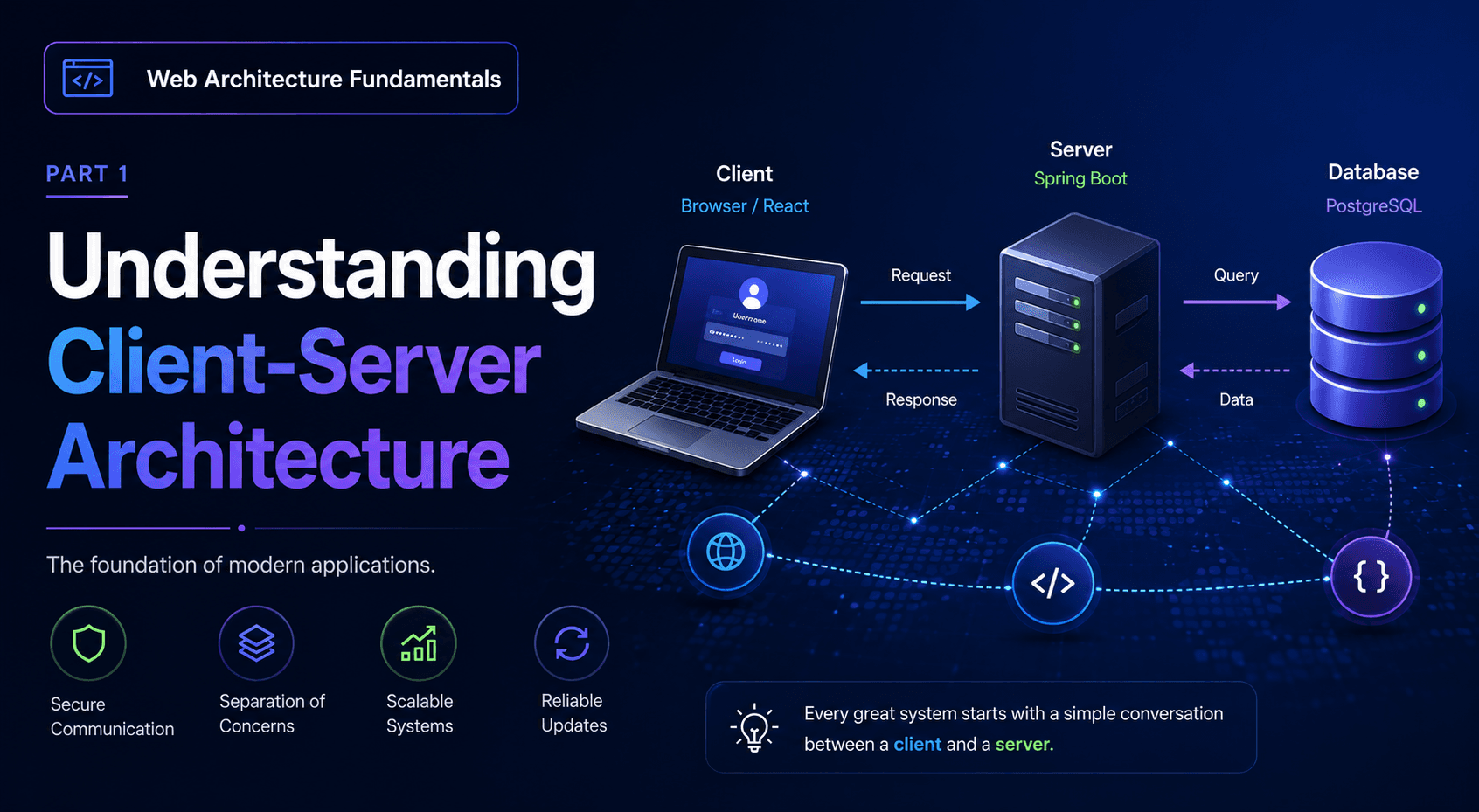

Web Architecture Fundamentals
Part 1: Understanding Client-Server Architecture — The Foundation of Modern Applications
Whenever we open a web application, watch a video online, send a message, or purchase a product, we interact with a system built on one of the most fundamental concepts in software engineering: Client-Server Architecture.
Despite powering nearly every modern application, many developers work with it daily without fully understanding what happens behind the scenes.
Before diving into distributed systems, microservices, load balancers, caching, or cloud infrastructure, it's important to understand the architectural foundation upon which all modern systems are built.
Let's explore Client-Server Architecture through a practical example.
What is Client-Server Architecture?
Client-Server Architecture is a software design model where responsibilities are divided between two components:
Client
The client is responsible for:
Accepting user input
Displaying information
Sending requests
Examples:
Web browsers
Mobile applications
Desktop applications
Server
The server is responsible for:
Processing requests
Executing business logic
Accessing databases
Returning responses
Examples:
Spring Boot applications
Node.js applications
ASP.NET services
At a high level:
Client ----Request----> Server
Client <---Response---- Server
The client asks for something.
The server processes the request and responds.
This simple interaction powers almost every application we use today.
A Real-World Analogy
Think of a restaurant.
Customer (Client)
The customer:
Reads the menu
Places an order
Waits for food
Kitchen (Server)
The kitchen:
Receives the order
Prepares the food
Sends it back
The customer never enters the kitchen.
The kitchen never sits at the customer table.
Each component has a specific responsibility.
Client-Server Architecture follows the same principle.
A Practical Example: Viewing Courses on an Online Learning Platform
Imagine a user opens an online learning platform and wants to view available courses.
Step 1: User Opens the Application
The browser loads the frontend application.
User
↓
Browser
At this stage, the browser only displays the user interface.
It does not contain the actual course data.
Step 2: Client Sends a Request
The frontend requests course information from the backend.
fetch("/api/courses")
.then(response => response.json())
.then(data => console.log(data));
The browser becomes the client.
The backend becomes the server.
Browser
|
| Request
v
Server
Step 3: Server Processes the Request
The backend receives:
GET /api/courses
A Spring Boot controller may look like:
@RestController
@RequestMapping("/api/courses")
public class CourseController {
@GetMapping
public List<Course> getCourses() {
return courseService.getAllCourses();
}
}
The server now handles the request.
Step 4: Server Communicates with the Database
The backend needs data.
It queries the database.
SELECT *
FROM courses;
The database returns the records.
Database
↓
Course Data
↓
Backend Server
Step 5: Response Returned to Client
The server converts the data into JSON.
[
{
"id": 1,
"title": "Java Fundamentals"
},
{
"id": 2,
"title": "Spring Boot Development"
}
]
The response travels back to the browser.
Server
|
Response
|
v
Browser
Step 6: Client Displays the Data
The browser receives the response.
The frontend renders the courses on screen.
From the user's perspective:
Open Application
↓
Courses Appear
From the system's perspective:
User
↓
Browser
↓
Backend Server
↓
Database
↓
Backend Server
↓
Browser
↓
User
This is the essence of Client-Server Architecture.
Why Do We Need Client-Server Architecture?
Imagine storing all application logic and data inside the browser.
Problems would quickly emerge:
Security Risks
Users could access sensitive data.
Difficult Maintenance
Every update would require distributing new application versions.
Data Inconsistency
Each user could have different copies of data.
Poor Scalability
Managing data across thousands of devices becomes impossible.
Separating responsibilities solves these problems.
Benefits of Client-Server Architecture
Centralized Data Management
Data lives on the server.
All users access the same source of truth.
Better Security
Sensitive logic remains on the server.
Passwords and business rules are protected.
Easier Maintenance
Backend updates can be deployed without requiring user intervention.
Scalability
Additional servers can be added as traffic grows.
This becomes the foundation for larger system design concepts.
How Modern Applications Use Client-Server Architecture
Most modern applications follow a layered model.
+---------------------+
| Browser |
+---------------------+
|
v
+---------------------+
| Frontend |
| React / Angular |
+---------------------+
|
v
+---------------------+
| Backend |
| Spring Boot |
+---------------------+
|
v
+---------------------+
| Database |
| PostgreSQL |
+---------------------+
As systems grow, additional layers are introduced:
Load Balancers
API Gateways
Cache Layers
Message Queues
Microservices
But every advanced architecture still relies on the same client-server communication pattern.
Common Misconceptions
"The Frontend Talks Directly to the Database"
In production systems, this is generally avoided.
The frontend should communicate with APIs, not databases.
"Client Means Browser Only"
Not true.
A client can be:
Mobile application
Desktop software
Smart TV application
IoT device
"Server Means One Physical Machine"
Not necessarily.
A server may represent multiple machines working together.
Key Takeaways
Client-Server Architecture is one of the most important concepts in software engineering.
Every modern application depends on it.
Understanding how clients request information and how servers process and return responses provides the foundation for learning:
HTTP and HTTPS
REST APIs
Authentication
API Gateways
Load Balancers
Microservices
Distributed Systems
Before designing systems that handle millions of users, we must first understand how a single client communicates with a server.
Every scalable architecture begins with this simple interaction.
Next Article
In the next article, we'll explore how clients and servers communicate using HTTP and HTTPS, and why these protocols form the backbone of the modern web.
